Swing Door Glass Display Freezer

Request a Quote

Pricing varies by model, configuration, quantity, and shipping terms. Please contact VALEX Global for a custom quotation.

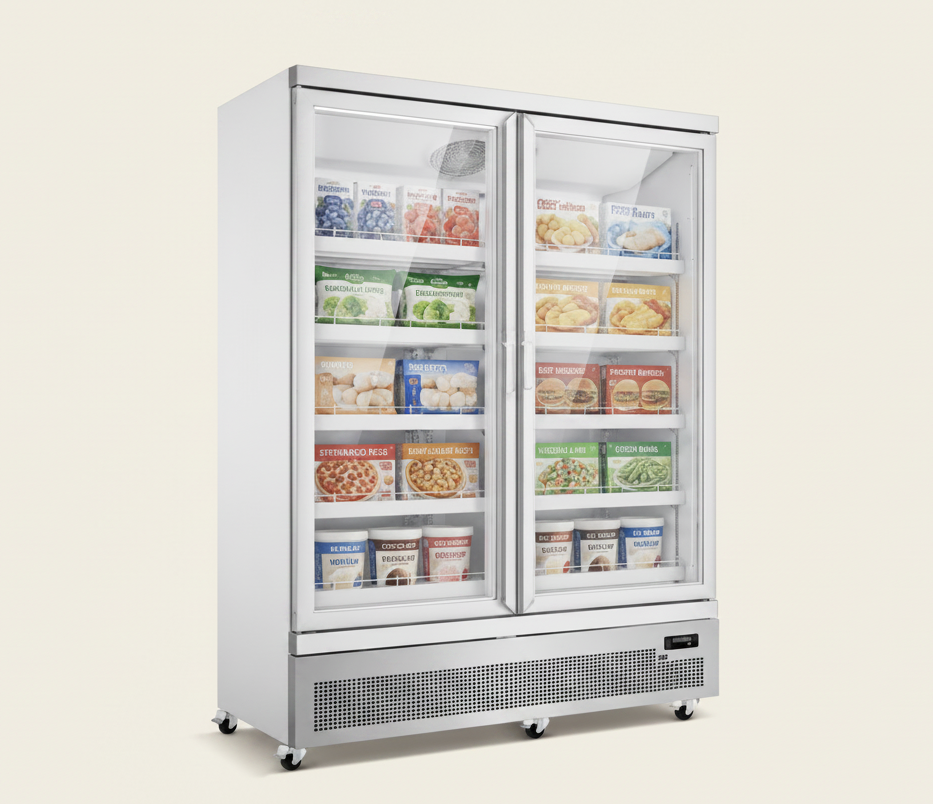

Product Overview

The Swing Door Glass Display Freezer is designed for frozen product display in supermarkets, grocery stores, convenience stores, and food retail spaces. It is suitable for frozen foods, ice cream, seafood, meat, frozen meals, and packaged frozen products.

This series features a bottom-mounted refrigeration system, swing glass doors, heated anti-fog glass, digital temperature control, and an air-cooled freezer design. Multiple widths are available to support different store layouts and frozen display requirements.

Applications

• Supermarkets and grocery stores
• Convenience stores
• Frozen food display areas
• Ice cream and frozen dessert sections
• Seafood, meat, and packaged frozen food retail areas

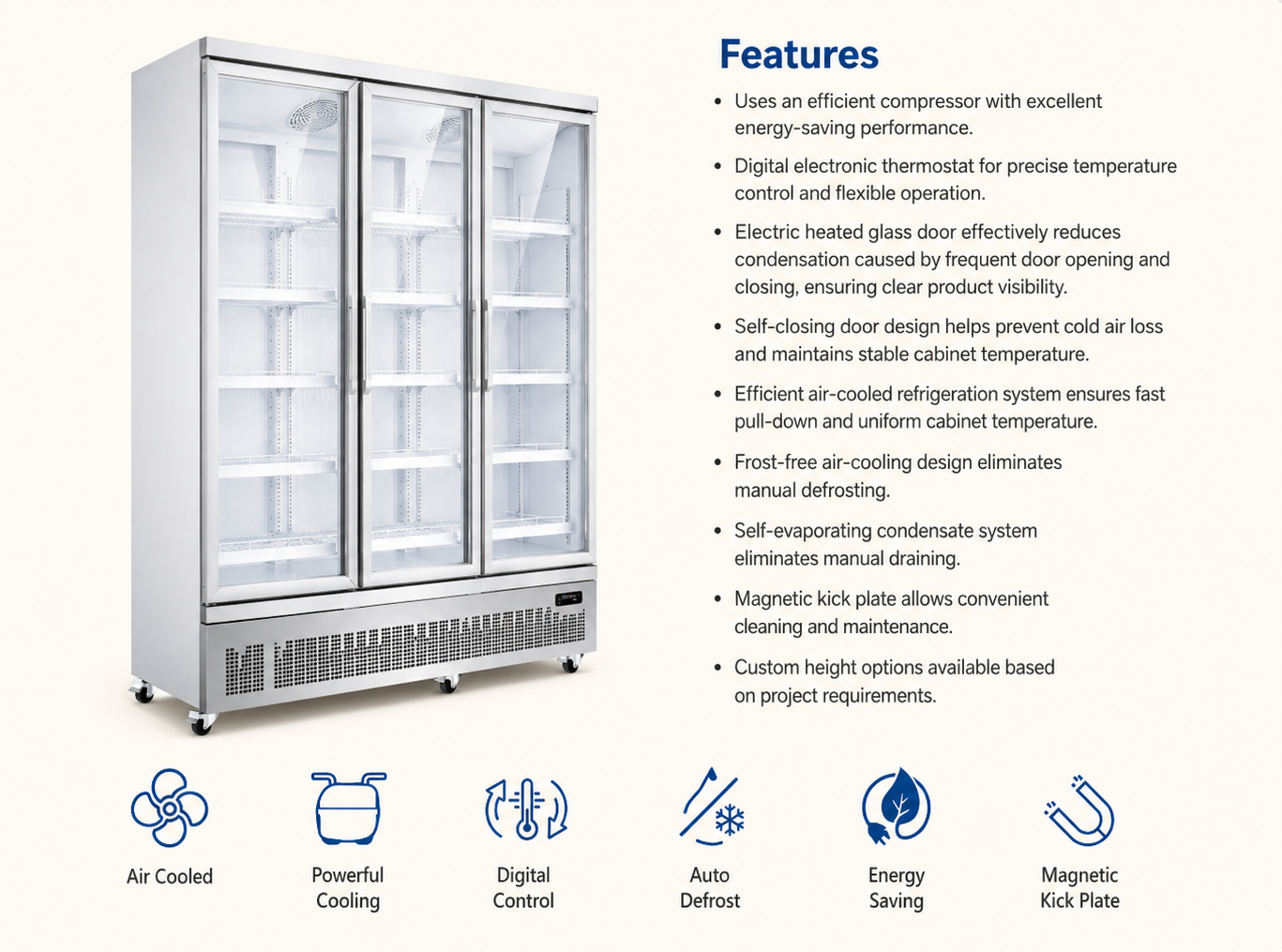

Key Features

• Bottom-mounted refrigeration system for easy service access
• Swing glass door design for clear frozen product visibility
• Electric heated anti-fog glass doors help reduce condensation and improve product visibility
• Digital electronic thermostat for precise temperature control
• Air-cooled refrigeration system for fast and even cabinet cooling
• Self-closing doors help reduce cold air loss
• Frost-free air cooling design eliminates the need for manual defrosting
• Self-evaporating condensate system reduces manual maintenance
• Magnetic kick plate allows convenient cleaning and service access
• Custom height options available for project requirements

Available Models

• VG-GDF-620 — 1 Door, 620 × 705 × 2050 mm
• VG-GDF-750 — 1 Door, 750 × 705 × 2050 mm
• VG-GDF-1250 — 2 Doors, 1250 × 705 × 2050 mm
• VG-GDF-1880 — 3 Doors, 1880 × 705 × 2050 mm

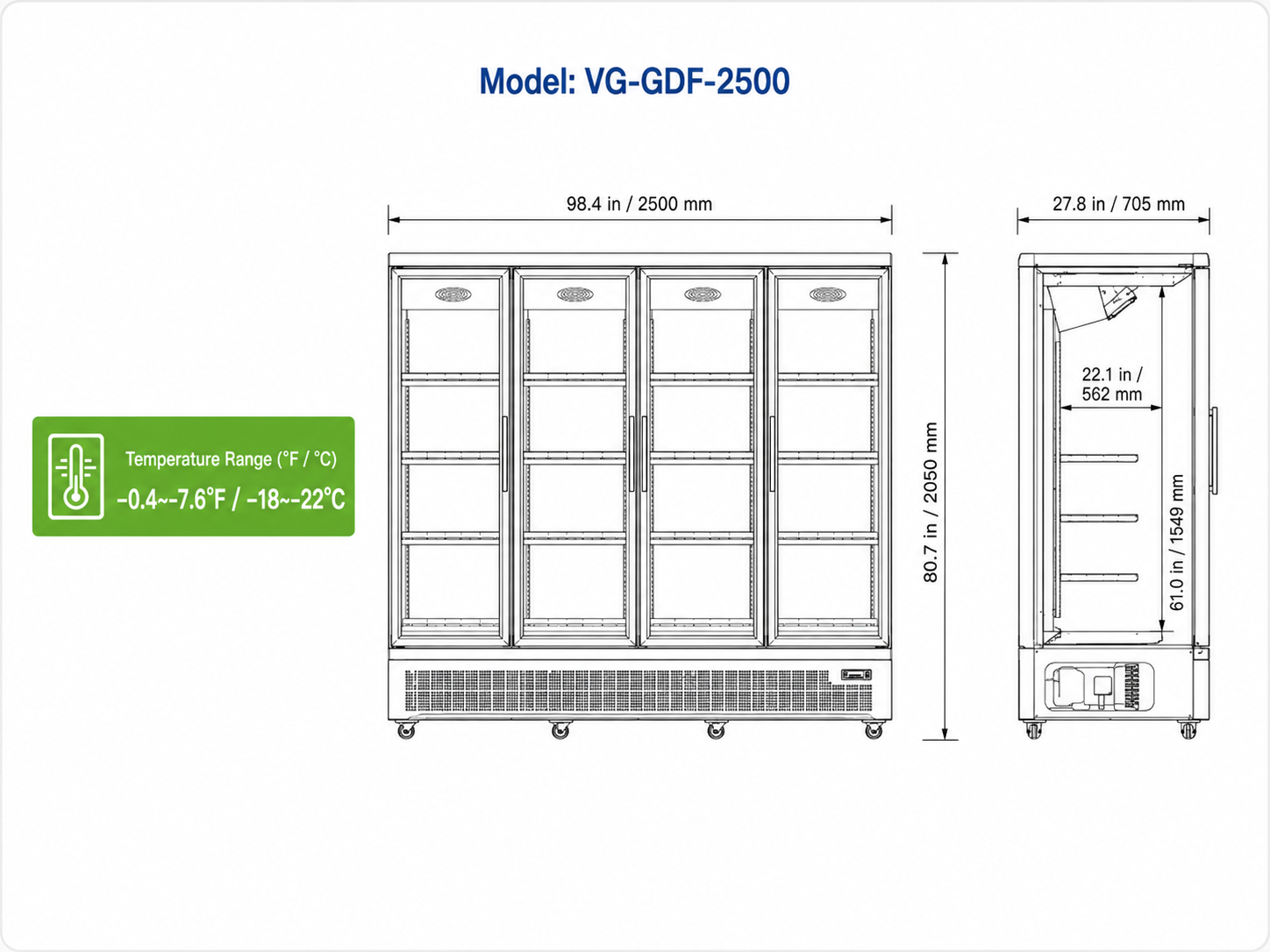

• VG-GDF-2500 — 4 Doors, 2500 × 705 × 2050 mm

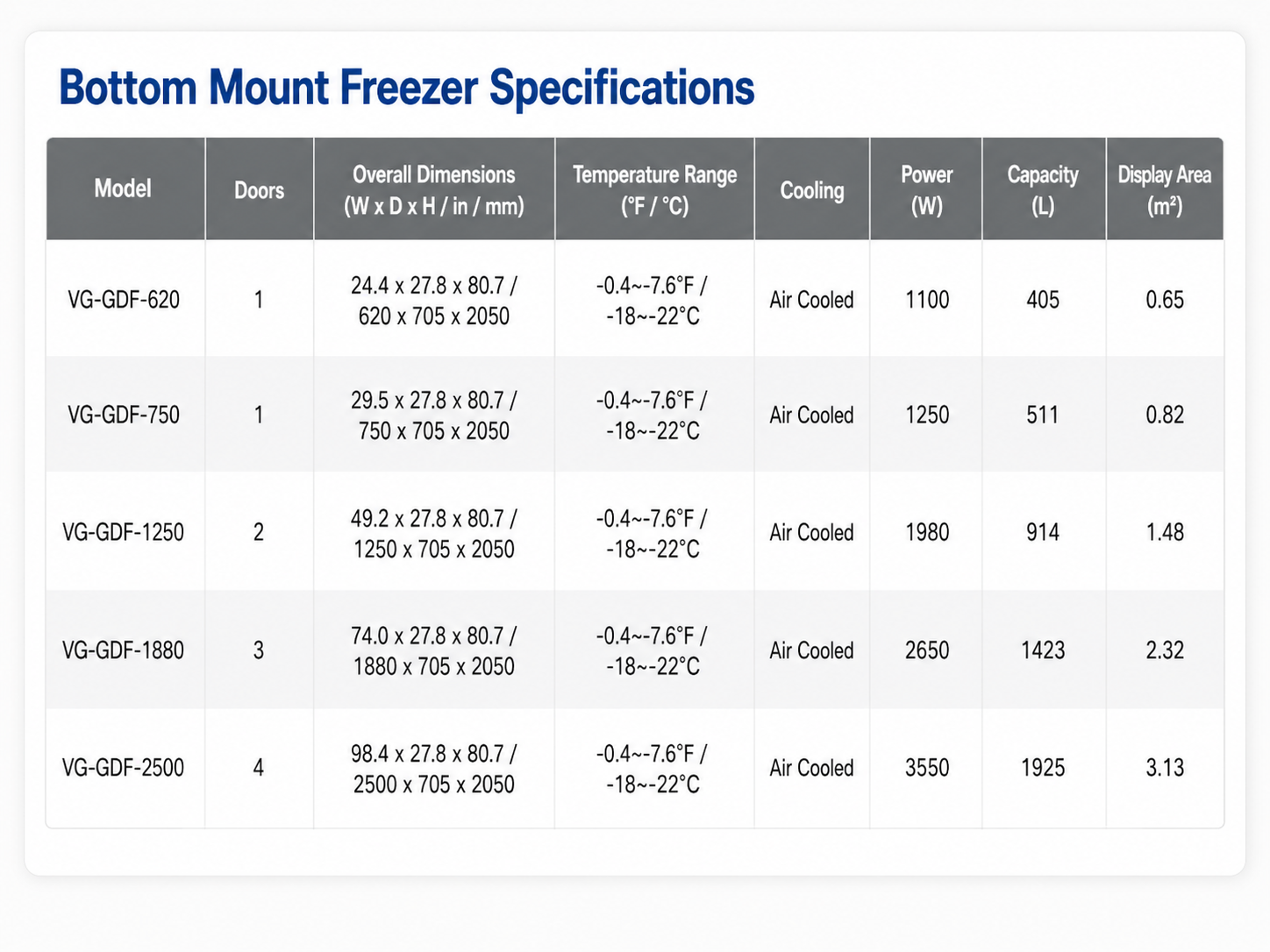

Specifications

• Temperature Range: -8 – 0°F / -22 ~ -18°C
• Cooling Type: Air Cooled
• Overall Dimensions: 24.4–98.4 in W × 27.8 in D × 80.7 in H / 620–2500 mm W × 705 mm D × 2050 mm H
• Capacity Range: 14.3–68.0 cu ft / 405–1925 L
• Display Area: 7.0–33.7 sq ft / 0.65–3.13 m²
• Power Range: 1100–3550 W

Customization Options

• Cabinet size and height
• Voltage and plug type
• Exterior color and finish
• Logo / private label branding
• Glass door and lighting configuration
• Shipping terms: FOB, DAP, or DDP

Need a specific size or project requirement?
Contact VALEX Global for a custom quotation, specification sheet, and shipping support.
