Combined Glass Door Freezer Merchandiser

Request a Quote

Pricing varies by model, configuration, quantity, and shipping terms. Please contact VALEX Global for a custom quotation.

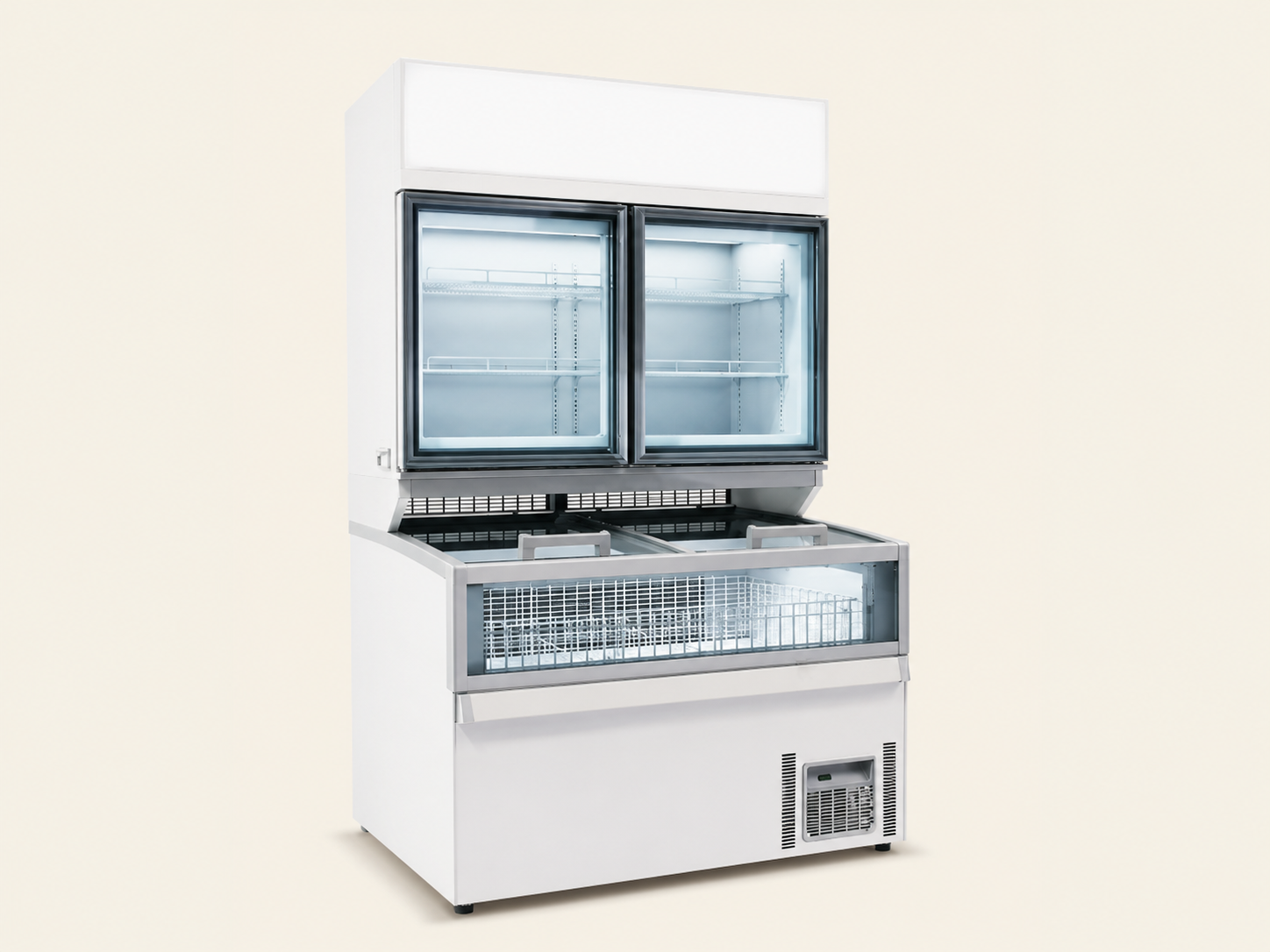

Product Overview

The Combined Glass Door Freezer Merchandiser is designed for frozen product display in supermarkets, grocery stores, and convenience stores. Its combination design integrates an upper glass door freezer with a lower island-style freezer, helping retailers improve product visibility while maximizing floor space.

This series features an air-cooled refrigeration system, precise electronic temperature control, and a frozen operating range of -18 to -22°C. The upper cabinet uses double-layer hollow electrically heated glass doors to help reduce condensation and frost, while the lower cabinet features a front viewing window with Low-E coated sliding glass lids for enhanced product presentation.

Applications

• Supermarkets and grocery stores
• Convenience stores
• Frozen food display areas
• Ice cream and frozen dessert sections
• Seafood, meat, and packaged frozen food retail areas

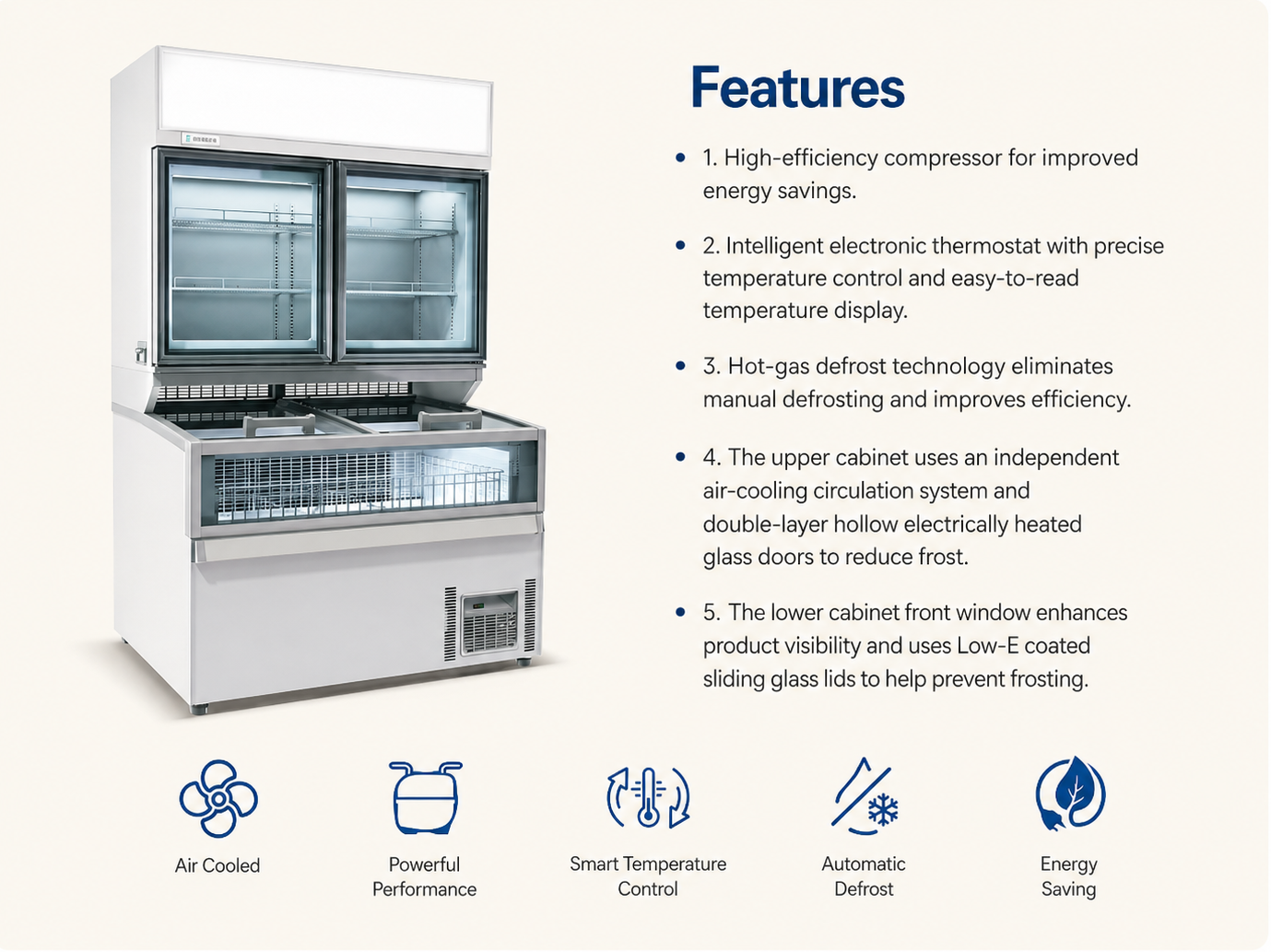

Key Features

• High-efficiency compressor for improved energy savings
• Intelligent electronic thermostat for precise temperature control
• Hot-gas defrost technology eliminates manual defrosting
• Independent air-cooling circulation system in the upper cabinet
• Double-layer hollow electrically heated glass doors help prevent condensation and frost
• Lower cabinet front viewing window improves product display visibility
• Low-E coated sliding glass lids help reduce condensation
• Flexible combination layout suitable for different store formats

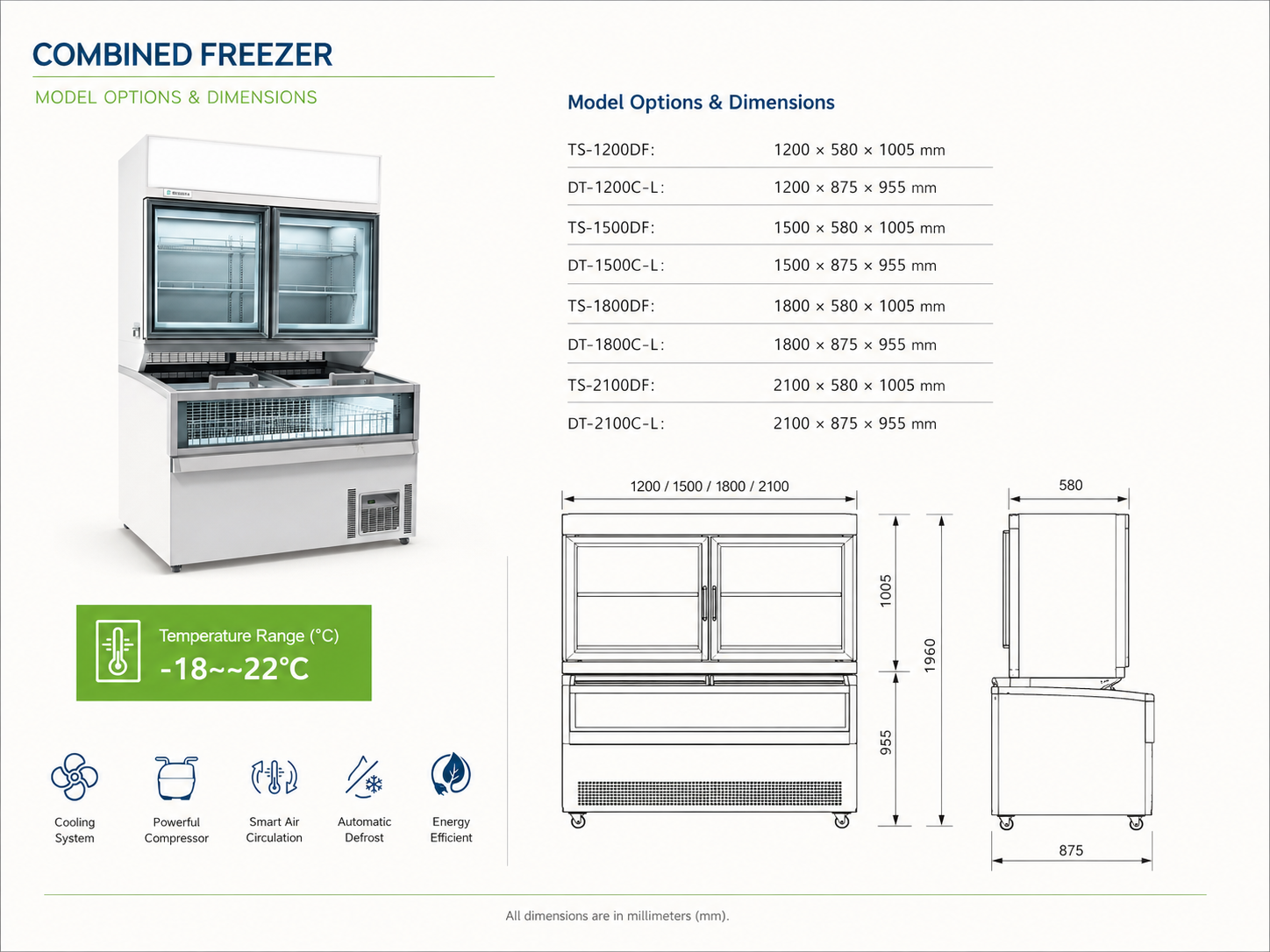

Available Models

• VG-CF-T1200 — Top Cabinet, 2 Doors, 1200 × 580 × 1005 mm
• VG-CF-B1200 — Bottom Cabinet, 2 Doors, 1200 × 875 × 955 mm
• VG-CF-T1500 — Top Cabinet, 2 Doors, 1500 × 580 × 1005 mm
• VG-CF-B1500 — Bottom Cabinet, 2 Doors, 1500 × 875 × 955 mm
• VG-CF-T1800 — Top Cabinet, 3 Doors, 1800 × 580 × 1005 mm
• VG-CF-B1800 — Bottom Cabinet, 2 Doors, 1800 × 875 × 955 mm
• VG-CF-T2100 — Top Cabinet, 3 Doors, 2100 × 580 × 1005 mm
• VG-CF-B2100 — Bottom Cabinet, 2 Doors, 2100 × 875 × 955 mm

Specifications

• Temperature Range: -18 ~ -22°C / 0 ~ -7.6°F
• Cooling Type: Air Cooled
• Top Cabinet Sizes: 1200 / 1500 / 1800 / 2100 × 580 × 1005 mm
• Bottom Cabinet Sizes: 1200 / 1500 / 1800 / 2100 × 875 × 955 mm
• Top Cabinet Capacity Range: 220–406 L
• Bottom Cabinet Capacity Range: 125–240 L
• Top Cabinet Power Range: 707–873 W
• Bottom Cabinet Power Range: 733–1011 W
• Top Cabinet Display Area Range: 0.377–0.689 m²
• Bottom Cabinet Display Area Range: 0.80–1.53 m²

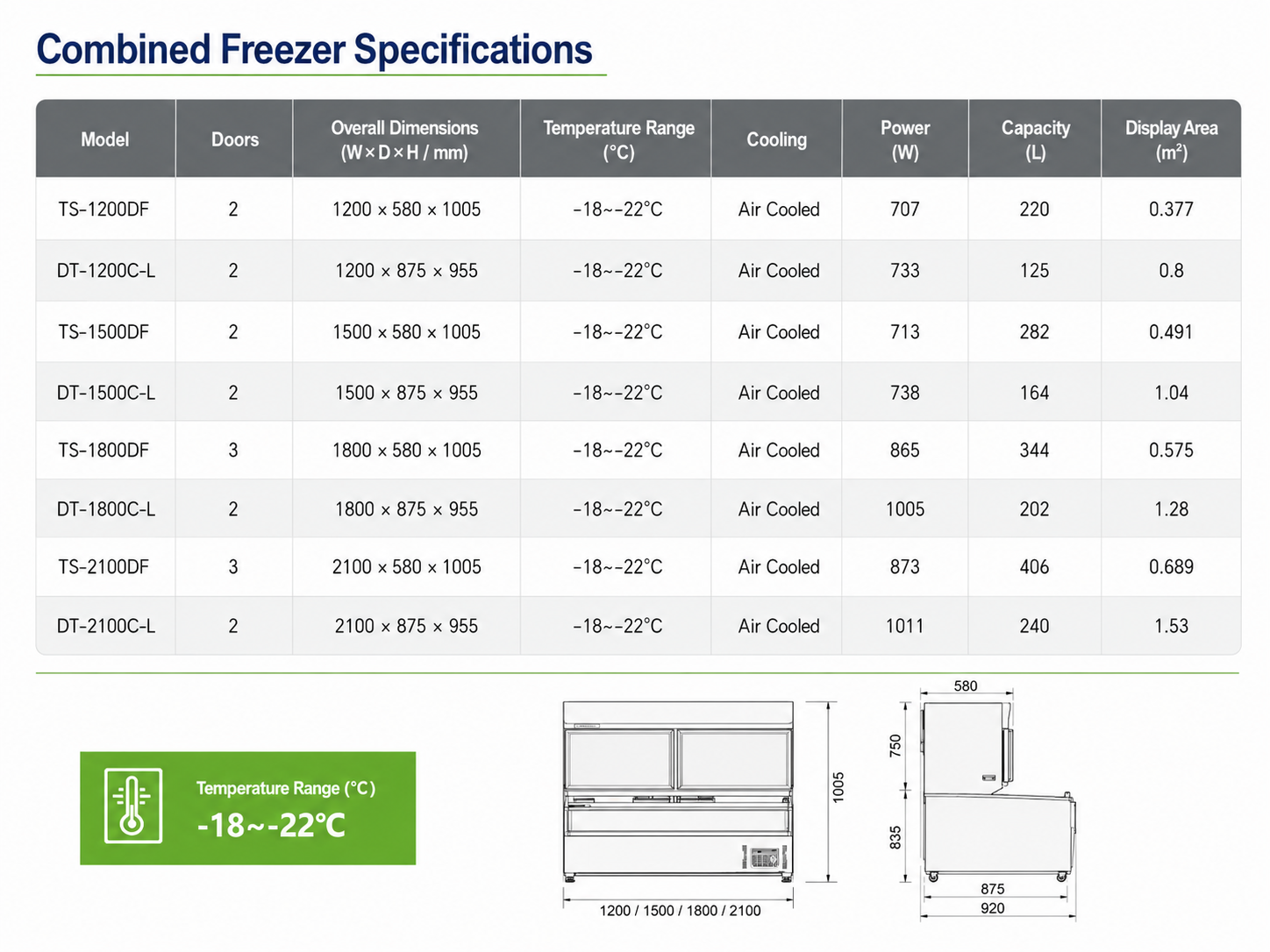

Detailed Model Data

• VG-CF-T1200 — 2 Doors / 1200 × 580 × 1005 mm / 707 W / 220 L / 0.377 m²
• VG-CF-B1200 — 2 Doors / 1200 × 875 × 955 mm / 733 W / 125 L / 0.80 m²
• VG-CF-T1500 — 2 Doors / 1500 × 580 × 1005 mm / 713 W / 282 L / 0.491 m²
• VG-CF-B1500 — 2 Doors / 1500 × 875 × 955 mm / 738 W / 164 L / 1.04 m²
• VG-CF-T1800 — 3 Doors / 1800 × 580 × 1005 mm / 865 W / 344 L / 0.575 m²
• VG-CF-B1800 — 2 Doors / 1800 × 875 × 955 mm / 1005 W / 202 L / 1.28 m²
• VG-CF-T2100 — 3 Doors / 2100 × 580 × 1005 mm / 873 W / 406 L / 0.689 m²
• VG-CF-B2100 — 2 Doors / 2100 × 875 × 955 mm / 1011 W / 240 L / 1.53 m²

Customization Options

• Model configuration and cabinet combination
• Voltage and plug type
• Exterior color and finish
• Logo / private label branding
• Glass door and display configuration
• Shipping terms: FOB or DDP

Need a specific size or project configuration?
Contact VALEX Global for a custom quotation, specification sheet, and shipping support.
